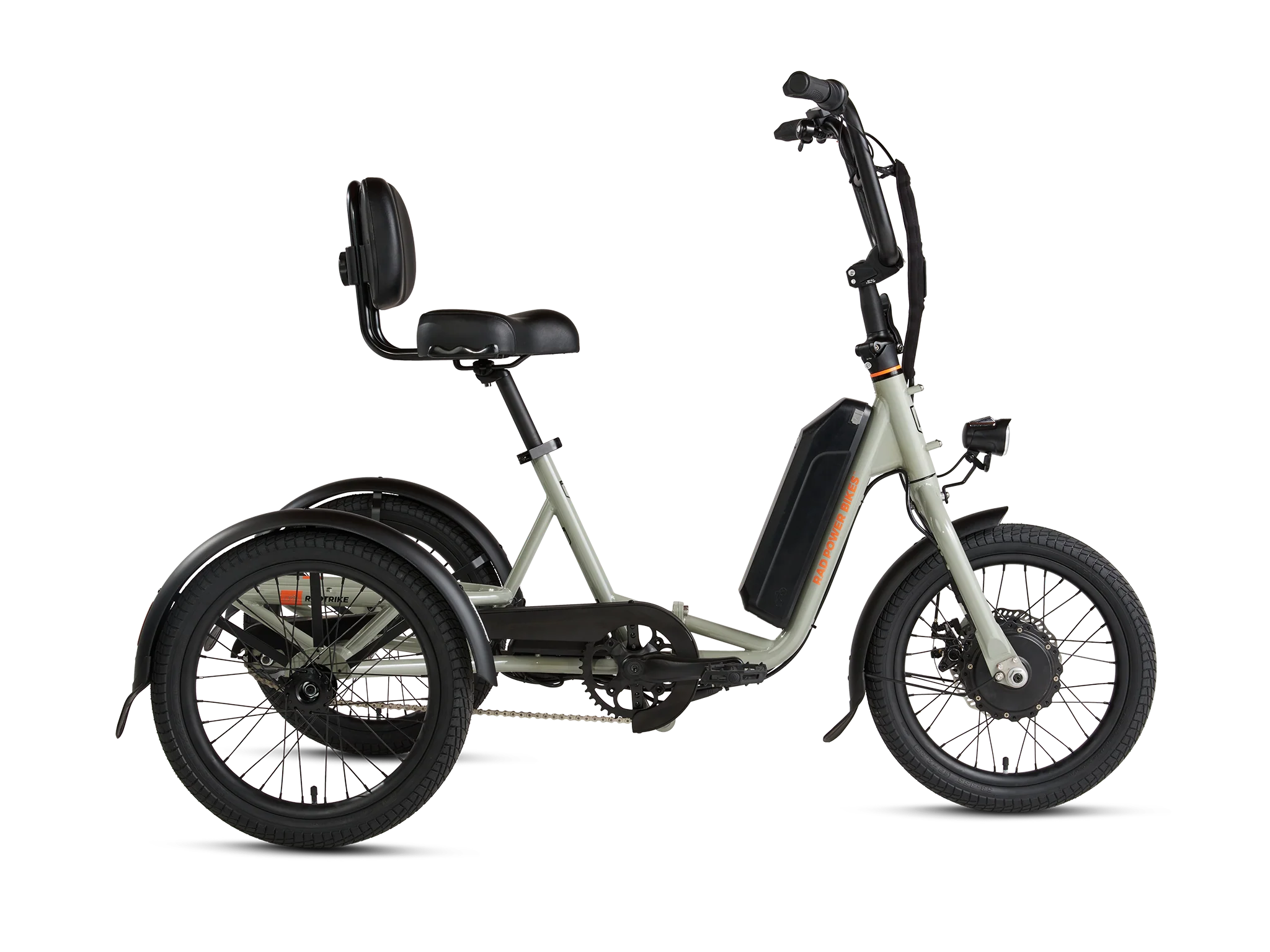

RadTrike
Specs & Details
Electronics
-
Battery
10Ah 480 Wh external battery, tested by ACT compliant to UL 2271
-
Charger
48V, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets
-
Display
Battery charge, pedal assist level, and headlight. See Display section below for details.
-
Hub Motor
Front hub 750W
Stated wattage is the manufacturer's rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. -
Lights
Auto-on feature
Front: LED headlight
Rear: Integrated taillight with brake light -
Pedal Assist
Pedal cadence sensor, 5 PAS levels, plus a zero assist option
-
Range
Up to 55 miles per charge
-
Throttle
Half twist throttle
-
Top Speed
14 mph
-
UL Status
Tested by ACT compliant to UL 2849 and UL 2271
-
USB Ports
Optional, sold separately as USB Charger
Batteries come with a universal key that can be used to lock and unlock the battery to your ebike. Please note that universal keys are not unique to your ebike battery and may work with a variety of locks, including on other Rad ebikes. Universal keys do not offer the highest level of security compared to dedicated or unique key locks. We do not recommend leaving your battery affixed to your ebike in public unattended as it may pose a risk of battery theft.
Components
-
Bell
Yes
-
Brakes
Front mechanical disk brake and a rear coaster (foot-operated) brake
-
Brake Lever(s)
Single aluminum alloy comfort grip lever with motor cutoff switch and orange parking brake
-
Brake Pads
Semi-metallic
-
Brake Rotors
C-star 180 mm on front wheel
-
Crank Set
42T, 152 mm crank length, square-taper, steel chainring, alloy crank
-
Derailleur
N/A
-
Fenders
Full coverage front and rear
-
Fork
Rigid steel fork
-
Frame
Chromoly steel
-
Freewheel/Cassette
16 tooth freewheel on rear axle
-
Gearing
Single speed
-
Grips
Lock-on ergonomic rubber comfort grips
-
Handlebar
Aluminum, 680 mm wide
-
Headset
Semi-integrated, 1-1/8" straight steerer tube
-
Kickstand
N/A
-
Pedals
Composite platform with reflectors, standard 9/16" x 20 TPI threading
-
Rear Rack
Integrated, 60 lb carrying capacity
-
Saddle
Cushioned saddle with adjustable height backrest
-
Seatpost
440 mm x 27.2 mm
-
Seatpost Clamp
Quick release
-
Shifter
N/A
-
Stem
50 mm + 30º (35 mm rise)
-
Tires
Kenda Kontact 18" x 2.25", K-Shield puncture-resistant liner
To ensure uninterrupted shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
-
Rider Heights
4'10" - 6'4" (Bike inseam between 25" and 35")
-
Bike Weight
82 lb, 73.6 lb with battery removed, battery: 8.4 lb
-
Payload
415 lb: 325 lb max rider weight, 60 lb max on rear rack
-
Rear Rack Payload
60 lb
-
Folded Dimensions
59.3"L x 33"W x 29"H
-
Handlebar Height
42.5" - 43.5" (108 - 110.5 cm)
-
Reach
18.1" (46 cm)
-
Seat Height
28" - 35.4" (71 - 90 cm)
-
Seat Dimensions (LxW)
9" x 11.5" (22.9 - 29.3 cm)
-
Standover Height
13.4" (34 cm)
-
Total Length
59.3" (151 cm)
-
Width (at widest point)
33" (84 cm)
-
Wheelbase
41.3" (105 cm)
-
Seat Tube Length
14.6" (37 cm)
